MG-130

MaxGain® 130 is an ultra-low-loss microwave coaxial cable designed for high-frequency performance. Its spiral outer conductor delivers exceptional shielding and flexibility in a lightweight form factor. Ideal for aerospace, defense, and communications systems where reliability, signal integrity, and reduced cable weight are essential.

High-performance MG-130 coaxial cable is a high-frequency interconnect solution built with spiral outer conductor technology.

Stock Code: AA-11521

MaxGain-130 low-loss, high performance microwave coaxial cable

Build your Assembly

This a factory assembled custom assembly. The cable and connectors are not available for individual sale.

Connector A
MG-130
Connector B
Build Your MaxGain Assembly

Specifications

Part NumberMG-130
Environment
JacketFEP
Overall Diameter (mm)3.33
Overall Diameter (in)0.131
Weight Kg/m0.0268
Weight lb/ft0.018
Operating Temp.°C (°F)-55° to 150°C (-67° to 302°F)
Min. Bend Radius (mm)15.875
Min. Bend Radius (in)0.625
Bending Moment (Nm)
Bending Moment (ft-lb)
Max Frequency (GHz)53
Impedance (ohms)50
Power Handling (DWV)

Compatible with

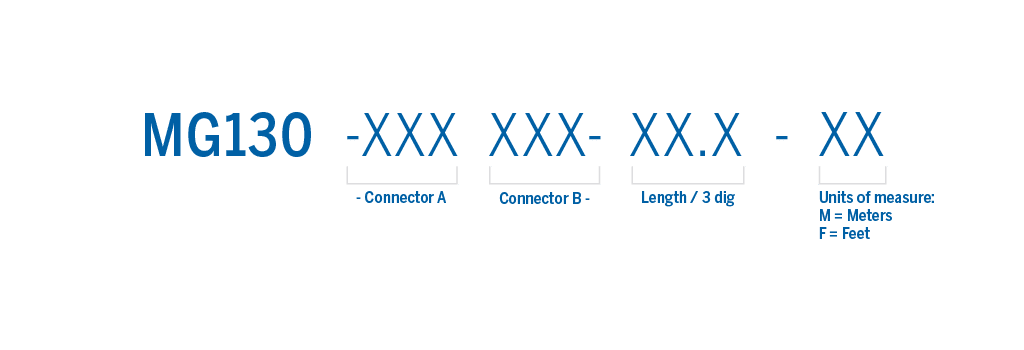

Part Number Structure

Part number structure

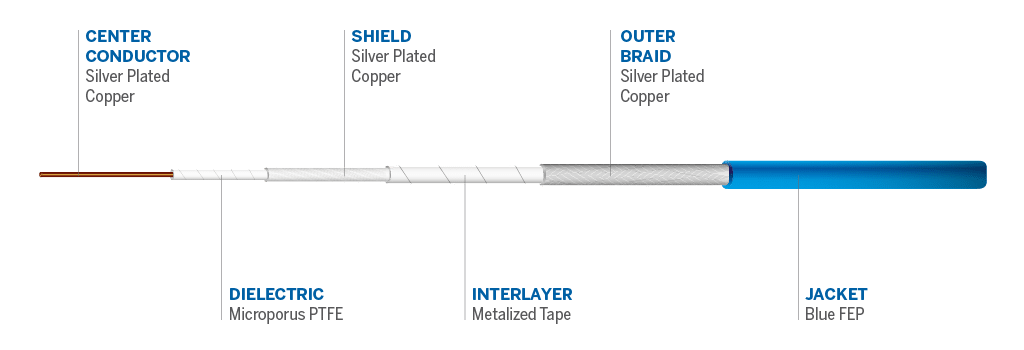

Cable Details

Cable details
