LMR-600

The LMR®-600 coaxial cable is a high-performance, low-loss RF cable designed for use in applications where a flexible and durable cable with excellent electrical characteristics is required. With a 50 Ohm impedance and a UV-resistant jacket, this cable is well-suited for use in antenna feeder jumper assemblies and other RF transmission systems that require a high level of signal fidelity and minimal signal loss. Its unique design helps to reduce signal attenuation over long cable runs, making it ideal for applications that require extended cable lengths.

50 Ohms LMR-600 coax cable with UV Resistant jacket. Great for antenna feeder jumper assemblies runs.

Stock Code: 54003

LMR-600 Standard cable, Black PE jacket

Inventory Status
In Stock Qty Order
Talley18934Buy
ICC9300Buy
WireMasters2350Buy
Heilind Electronics9300Buy
CDM Inc.13154Buy
Graybar6697Buy
Graybar335Buy
Arrow Electronics400Buy
Mouser Electronics20853Buy
TTI5500Buy
DigiKey8357Buy

Specifications

Part NumberLMR-600
EnvironmentOutdoor
JacketPE
Overall Diameter (mm)14.986
Overall Diameter (in)0.59
Weight Kg/m0.1949
Weight lb/ft0.131
Operating Temp.°C (°F)-40° to 85°C (-40° to 185°F)
Min. Bend Radius (mm)38.1
Min. Bend Radius (in)1.5
Bending Moment (Nm)3.73
Bending Moment (ft-lb)2.75
Max Frequency (GHz)6
Impedance (ohms)50
Power Handling (DWV)

Compatible with

TC-600-716M-X TC-600-BM-RA-D TC-600-HNMC TC-600-NF-X TC-600-NF-BH TC-600-NMC-2-D TC-600-NMH-X TC-600-NMH-RA-D TC-600-TF-X TC-600-TF-RP TC-600-TM-RP TC-600-TM-RA-D EZ-600-4310M-X EZ-600-4310M-RA-X EZ-600-716F-X EZ-600-716M-X EZ-600-716M-RA-X EZ-600-NF-BH-X EZ-600-NF-X EZ-600-NMH-X EZ-600-NMC-2-D EZ-600-NMK EZ-600-QNF-X EZ-600-QNM-X EZ-600-QNM-RA-X EZ-600-TF-X EZ-600-TF-BH-X EZ-600-TF-RP EZ-600-TM-X EZ-600-TM-RP EZ-600-UM-X EZ-600-NMH-RA-X EZ-600-78-EIA

Can't find what you're looking for?

Build Your Own LMR® Assembly

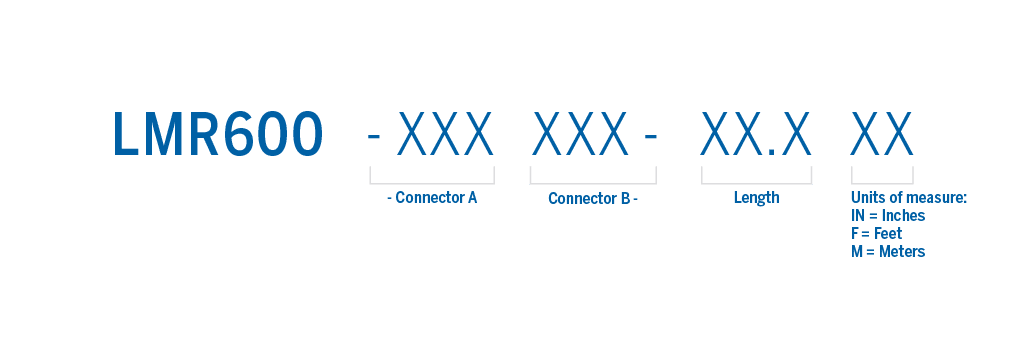

Part Number Structure

Part number structure

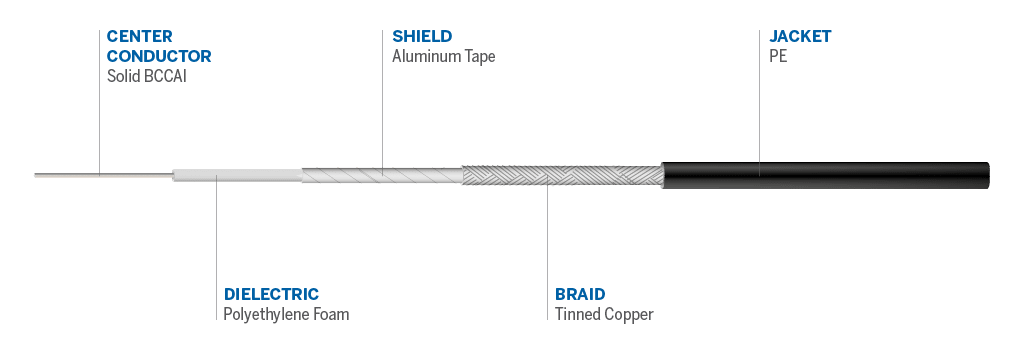

Cable Details

Cable details

Tools and Accessories

CT-600

CT-600
CST-600

CST-600
CCT-03

CCT-03
Cold Shrink Weatherproofing

Cold Shrink Weatherproofing
Weather Seal Strain Relief Boots

Weather Seal Strain Relief Boots

Documentation

LMR-600 Coax Cables Datasheet

LMR-600 Coax Cables Datasheet

Download

LMR Guide

Download

LMR Guide- European Version

Download
