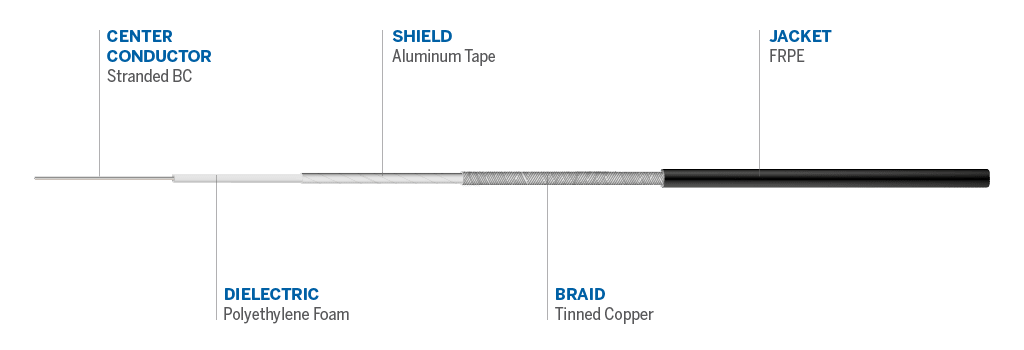

LMR®-400-UF-FR 50 Ohm coax cable features a stranded center conductor and a non-halogen, low smoke, fire-retardant jacket. Ideal for RF applications needing repeated flexing or tight bends, it offers excellent durability, flexibility, and low loss performance for indoor use where fire safety and reliability are critical.
LMR-400 cable/stranded center conductor and FR PE jkt, listed CMR (PCC-FT4)
| Part NumberLMR-400-UF-FR |
| Environment |
| JacketFR-PE |
| Overall Diameter (mm)10.287 |
| Overall Diameter (in)0.405 |
| Weight Kg/m0.131 |
| Weight lb/ft0.088 |
| Operating Temp.°C (°F)-40° to 85°C (-40° to 185°F) |
| Min. Bend Radius (mm)25.4 |
| Min. Bend Radius (in)1 |
| Bending Moment (Nm)0.67835355 |
| Bending Moment (ft-lb)0.5 |
| Max Frequency (GHz)6 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
