LMR-400
The LMR® cable series includes the ultra-flexible LMR-400, 50 Ohms coax cable with UV Resistant jacket. Great drop-in replacement for RG-8/9913 cables. Designed for antenna feeder jumper assemblies runs requiring a high-performance, flexible, low loss RF cable.
Stock Code: 54001
LMR-400 Standard cable, Black PE jacket
Inventory Status
Specifications
| Part NumberLMR-400 |
| EnvironmentOutdoor |
| JacketPE |
| Overall Diameter (mm)10.287 |
| Overall Diameter (in)0.405 |
| Weight Kg/m0.068 |
| Weight lb/ft0.068 |
| Operating Temp.°C (°F)
-40° to 85°C
(-40° to 185°F) |
| Min. Bend Radius (mm)25.4 |
| Min. Bend Radius (in)1 |
| Bending Moment (Nm)0.68 |
| Bending Moment (ft-lb)0.5 |
| Max Frequency (GHz)6 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with
TC-400-716M-RA-D
TC-400-716M-X
TC-400-BM-RA-D
TC-400-HNM-RA
TC-400-MUHF
TC-400-NF-X
TC-400-NMH-X
TC-400-NMC-2
TC-400-NMH-RA-D
TC-400-NM-RP
TC-400-QNM-X
TC-400-SM-X
TC-400-SF-X
TC-400-TM-X
TC-400-TM-RA-D
TC-400-TM-RP
TC-400-TM-RP-RA-D
TC-400-4310M-X
EZ-400-4310M-X
EZ-400-716M-X
EZ-400-716M-RA-X
EZ-400-BM-X
EZ-400-NF-X
EZ-400-NMC-2-D
EZ-400-NMH-RA-X
EZ-400-NMH-X
EZ-400-NMK-X
EZ-400-QNF-X
EZ-400-QNM-RA-X
EZ-400-SF-X
EZ-400-SM-X
EZ-400-TF-X
EZ-400-TF-RP
EZ-400-TM-X
EZ-400-TM-RA-X
EZ-400-TM-RP
EZ-400-UM-X
EZ-400-BM-RA-X
EZ-400-NF-BH-X
TC-400-BM-X

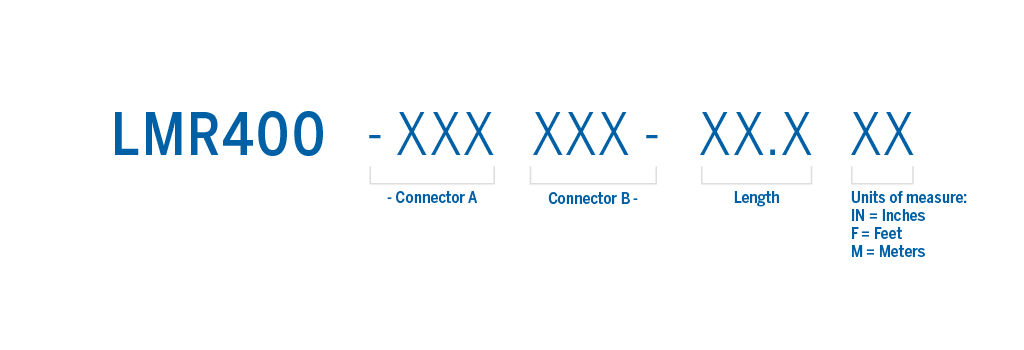

Part Number Structure

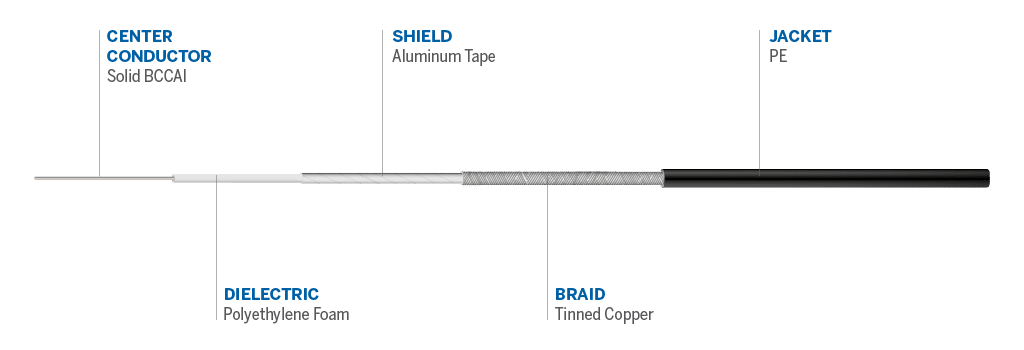

Cable Details
