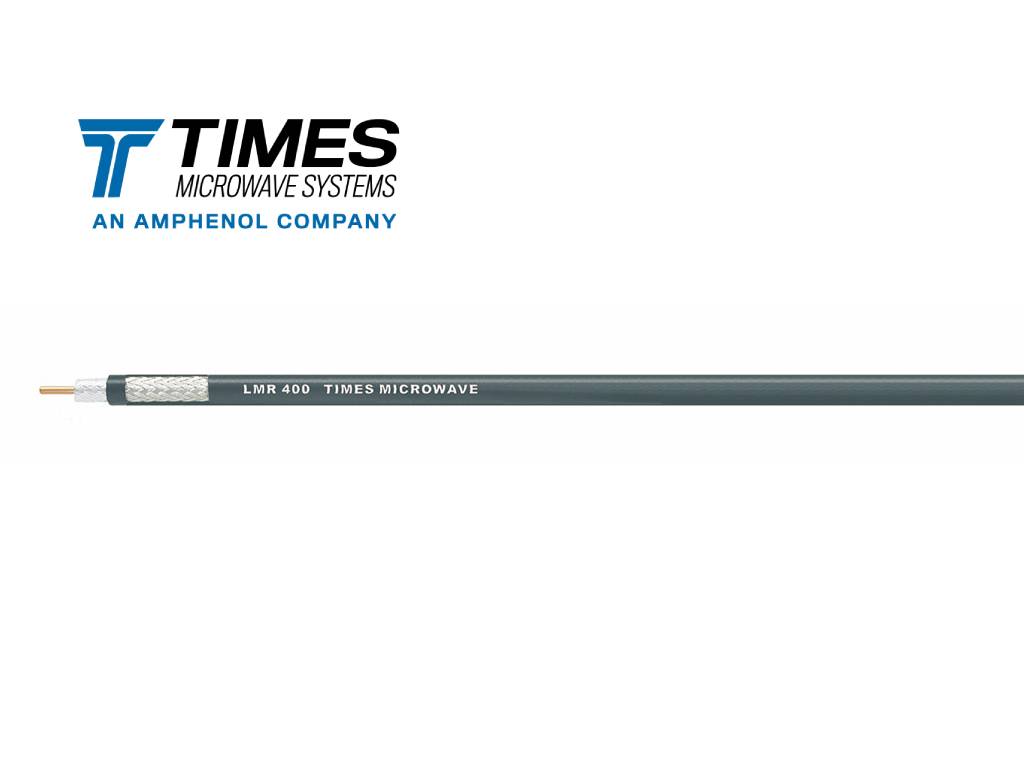

LMR-400

LMR®-400 50 Ohms coax cable with UV Resistant jacket. Great drop-in replacement for RG-8/9913 cables. Designed for antenna feeder jumper assemblies runs requiring a high-performance, flexible, low loss RF cable.

50 Ohms LMR-400 coax cable with UV Resistant jacket designed for antenna feeder jumper assemblies runs.

Stock Code: 54001

LMR-400 Standard cable, Black PE jacket

Inventory Status
In Stock Qty Order
PEI-Genesis41765Buy
ICC4000Buy
WireMasters6805Buy
Heilind Electronics4000Buy
Graybar27478Buy
CDM Inc.52067Buy
Microwave Components, LLC9175Buy
East Coast Microwave5421Buy
FDH Electronics903Buy
Mouser Electronics42254Buy
TTI7000Buy
DigiKey11006Buy
RS5000Buy

Specifications

Part NumberLMR-400
EnvironmentOutdoor
JacketPE
Overall Diameter (mm)10.287
Overall Diameter (in)0.405
Weight Kg/m0.1012
Weight lb/ft0.068
Operating Temp.°C (°F)-40° to 85°C (-40° to 185°F)
Min. Bend Radius (mm)25.4
Min. Bend Radius (in)1
Bending Moment (Nm)0.68
Bending Moment (ft-lb)0.5
Max Frequency (GHz)6
Impedance (ohms)50
Power Handling (DWV)

Compatible with

TC-400-716M-RA-D TC-400-716M-X TC-400-BM-RA-D TC-400-HNM-RA TC-400-MUHF TC-400-NF-X TC-400-NMH-X TC-400-NMC-2 TC-400-NMH-RA-D TC-400-NM-RP TC-400-QNM-X TC-400-SM-X TC-400-SF-X TC-400-TF-RP TC-400-TM-X TC-400-TM-RA-D TC-400-TM-RP TC-400-TM-RP-RA-D TC-400-4310M-X EZ-400-4310M-X EZ-400-716M-X EZ-400-716M-RA-X EZ-400-BM-X EZ-400-NF-X EZ-400-NMC-2-D EZ-400-NMH-RA-X EZ-400-NMH-X EZ-400-NMK-X EZ-400-QNF-X EZ-400-QNM-RA-X EZ-400-SF-X EZ-400-SM-X EZ-400-TF-X EZ-400-TF-RP EZ-400-TM-X EZ-400-TM-RA-X EZ-400-TM-RP EZ-400-UM-X EZ-400-BM-RA-X EZ-400-NF-BH-X TC-400-BM-X

Can't find what you're looking for?

Build Your Own LMR® Assembly

Part Number Structure

Part number structure

Cable Details

Cable details

Tools and Accessories

CCT-03

CCT-03
Cold Shrink Weatherproofing

Cold Shrink Weatherproofing
CST-400

CST-400
CT-400/300

CT-400/300
Grounding Kits

Grounding Kits
Weather Seal Strain Relief Boots

Weather Seal Strain Relief Boots

Documentation

LMR Guide

Download

LMR Guide- European Version

Download
