LMR-400-75-FR
LMR®-75-FR is a non-halogen (non-toxic), low smoke, fire retardant cable designed for in-building runs that can be routed anywhere except air handling plenums. LMR-75-FR is UL/NEC & CSA rated ‘CMR’ and ‘FT4’ respectively, meets FAA FAR25 requirements and is MSHA-P for mining applications.
Stock Code: 54256
LMR-400 w/non-halogen jkt, 75 Ohm, listed CMR/MPR (PCC-FT4)
Specifications
| Part NumberLMR-400-75-FR |
| EnvironmentIndoor |
| JacketFRPE |
| Overall Diameter (mm)10.287 |
| Overall Diameter (in)0.405 |
| Weight Kg/m0.068 |
| Weight lb/ft0.068 |
| Operating Temp.°C (°F)
-40° to 85°C
(-40° to 185°F) |
| Min. Bend Radius (mm)25.4 |
| Min. Bend Radius (in)1 |
| Bending Moment (Nm)0.68 |
| Bending Moment (ft-lb)0.5 |
| Max Frequency (GHz)6 |
| Impedance (ohms)75 |
| Power Handling (DWV) |
Compatible with

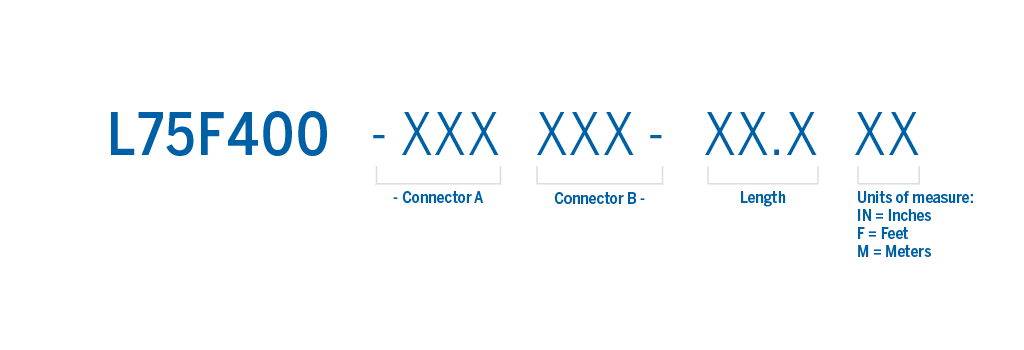

Part Number Structure

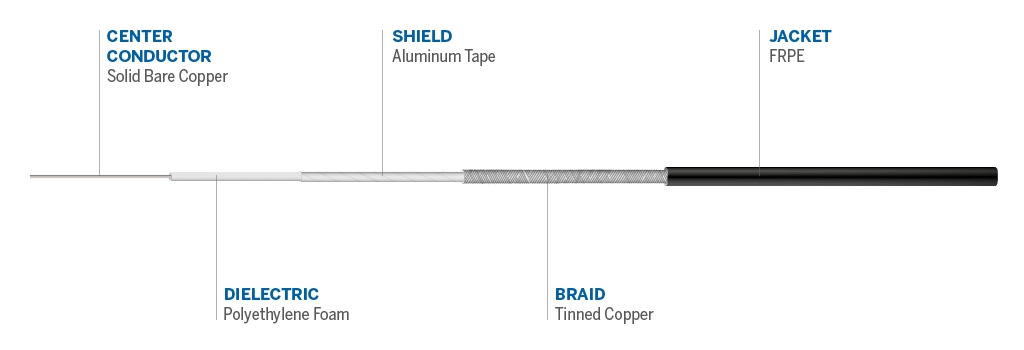

Cable Details
Tools and Accessories
Resources
