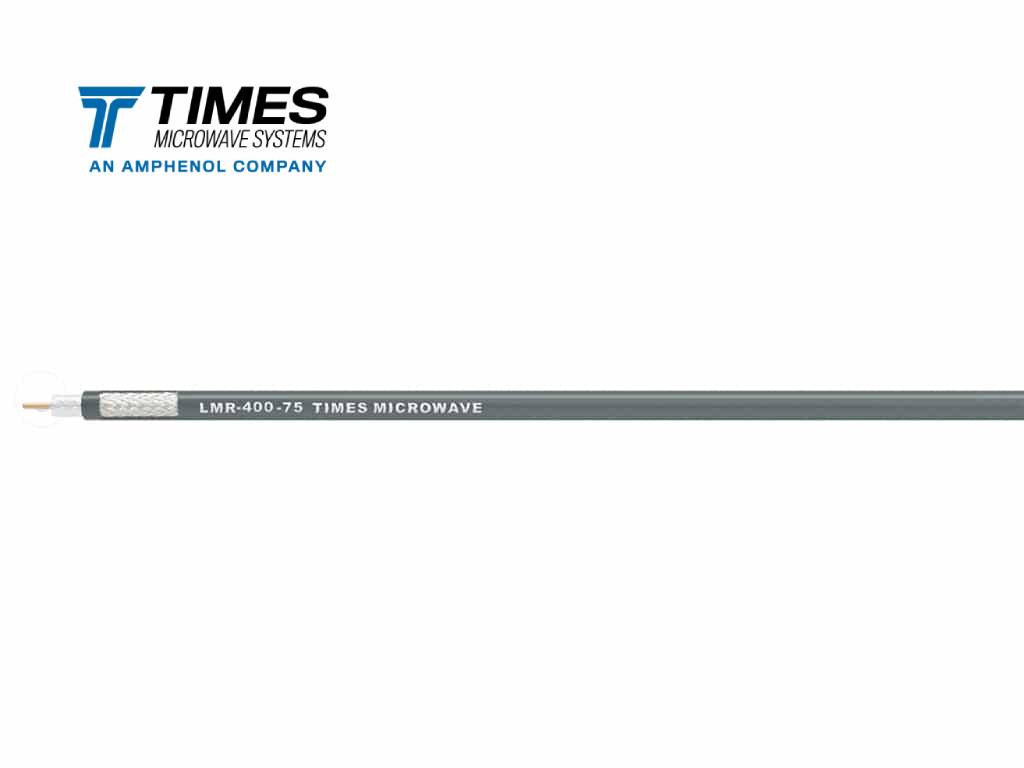

LMR-400-75
The LMR®-400-75 is a 75 Ohm coaxial cable designed with a UV and weather-resistant jacket, making it ideal for outdoor use. It offers superior flexibility, easier handling, and improved bend performance compared to traditional smooth wall or corrugated hard-line cables, without compromising signal integrity
Stock Code: 54147
Standard cable, Black PE jacket, 75 Ohm (RG-11 size)
Inventory Status
Specifications
| Part NumberLMR-400-75 |
| EnvironmentIndoor/Outdoor |
| JacketPE |
| Overall Diameter (mm)10.287 |
| Overall Diameter (in)0.405 |
| Weight Kg/m0.085 |
| Weight lb/ft0.085 |
| Operating Temp.°C (°F)
-40° to 85°C
(-40° to 185°F) |
| Min. Bend Radius (mm)25.4 |
| Min. Bend Radius (in)1 |
| Bending Moment (Nm)0.6779 |
| Bending Moment (ft-lb)0.5 |
| Max Frequency (GHz)6 |
| Impedance (ohms)75 |
| Power Handling (DWV)2000 |
Compatible with

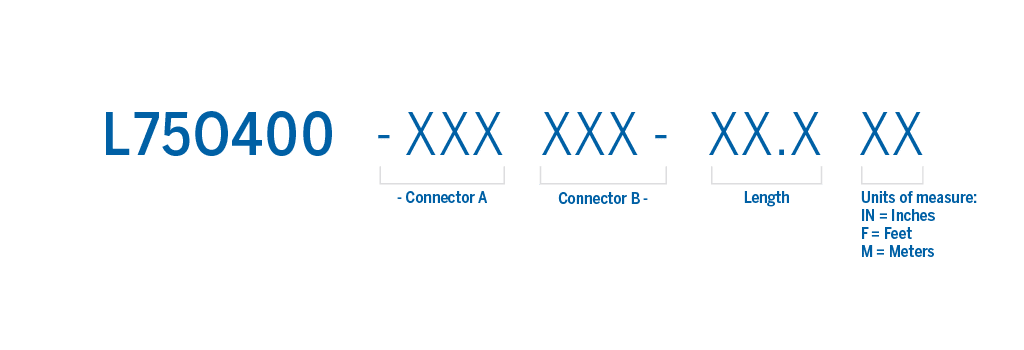

Part Number Structure

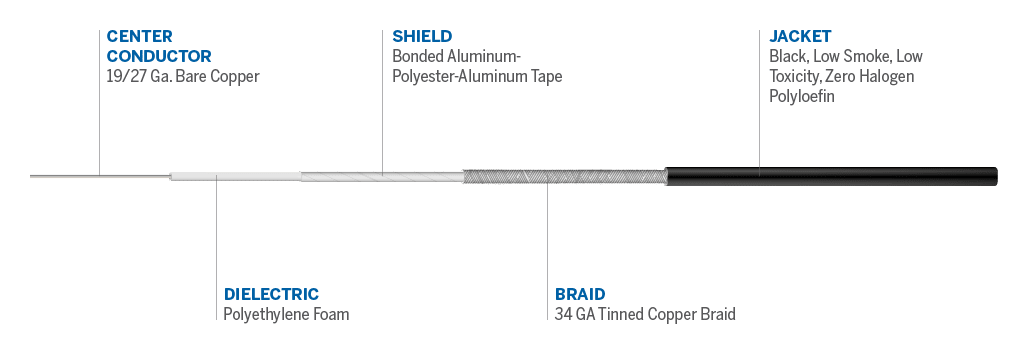

Cable Details
Tools and Accessories
