LMR-240-PVC

LMR®-240-PVC 50 Ohm coax cable features a flexible PVC jacket, ideal for general-purpose indoor RF applications. It offers improved flexibility over polyethylene-jacketed cables, making it suitable for tight bends and easy routing. Perfect for commercial or residential setups requiring reliable signal performance and easy cable handling.

LMR-240-PVC

Stock Code: 54140

LMR-240 Indoor Cable, Black PVC jacket

Inventory Status
Distributor Qty Order
Mouser Electronics2206Buy
DigiKey806Buy
CDM Inc.272Buy
East Coast Microwave590Buy

Specifications

Part NumberLMR-240-PVC
Environment
JacketPVC
Overall Diameter (mm)6.096
Overall Diameter (in)0.24
Weight Kg/m0.034
Weight lb/ft0.034
Operating Temp.°C (°F) -40° to 85°C
(-40° to 185°F)
Min. Bend Radius (mm)19.05
Min. Bend Radius (in)0.75
Bending Moment (Nm)0.339176775
Bending Moment (ft-lb)0.25
Max Frequency (GHz)6
Impedance (ohms)50
Power Handling (DWV)

Compatible with

TC-240-4310M-X TC-240-716M TC-240-716M-RA-D TC-240-BM-X TC-240-BM-RA-D TC-240-FMEM-X TC-240-MUHF TC-240-NF-BH-X TC-240-NF-PM-X TC-240-NMH-X TC-240-NMH-RA-D TC-240-SF-BH-SS-X TC-240-SM-SS-X TC-240-SM-RA-SS-D TC-240-SM-RP TC-240-TM-X TC-240-TM-RA-D EZ-240-1023M-X EZ-240-BM-RA-X EZ-240-BM-X EZ-240-716M-RA-X EZ-240-NF-X EZ-240-NF-BH-X EZ-240-NMH-RA-X EZ-240-QM-X EZ-240-QM-RA-X EZ-240-SF-X EZ-240-SM-X EZ-240-SM-RA-X EZ-240-TF-X EZ-240-TM-X EZ-240-TM-RP-X EZ-240-UM-X EZ-240-UM-RA-X EZ-240-TM-RA-X EZ-240-NMH-X

Can't find what you're looking for?

Build Your Own LMR® Assembly

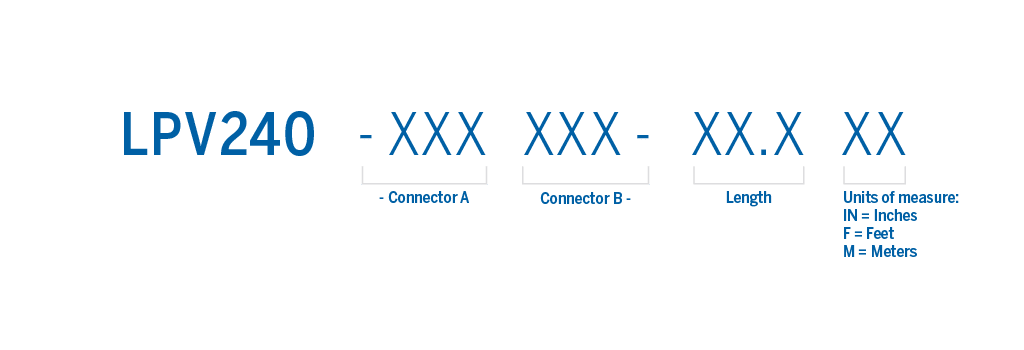

Part Number Structure

lmr-240-pvc-part-number

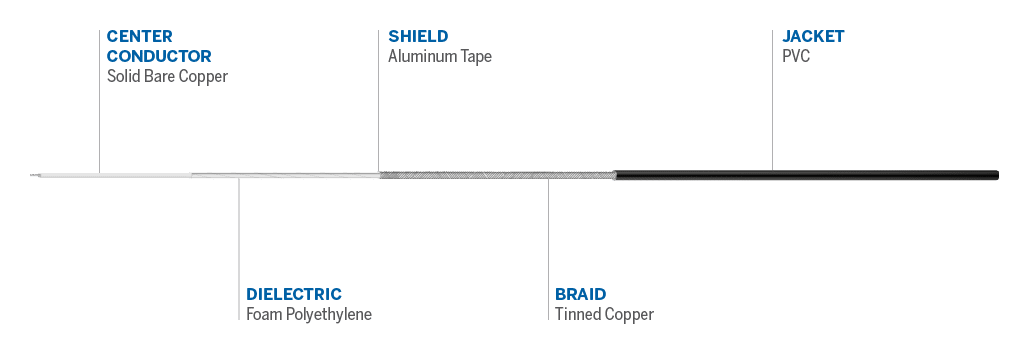

Cable Details

lmr-240-pvc-details

Tools and Accessories

CST-240A

CST-240A
Grounding Kits

Grounding Kits
Weather Seal Strain Relief Boots

Weather Seal Strain Relief Boots
CCT-02

CCT-02
CCT-03

CCT-03
CT-240/200/195/100

CT-240/200/195/100
