IB-141
InstaBend® 141 is flexible, coaxial microwave assemblies designed for interconnects between RF circuit cards, modules and enclosure panels. The cable can be bent very closely behind the connector, simplifying cable routing. InstaBend 141
Stock Code: 510-0201

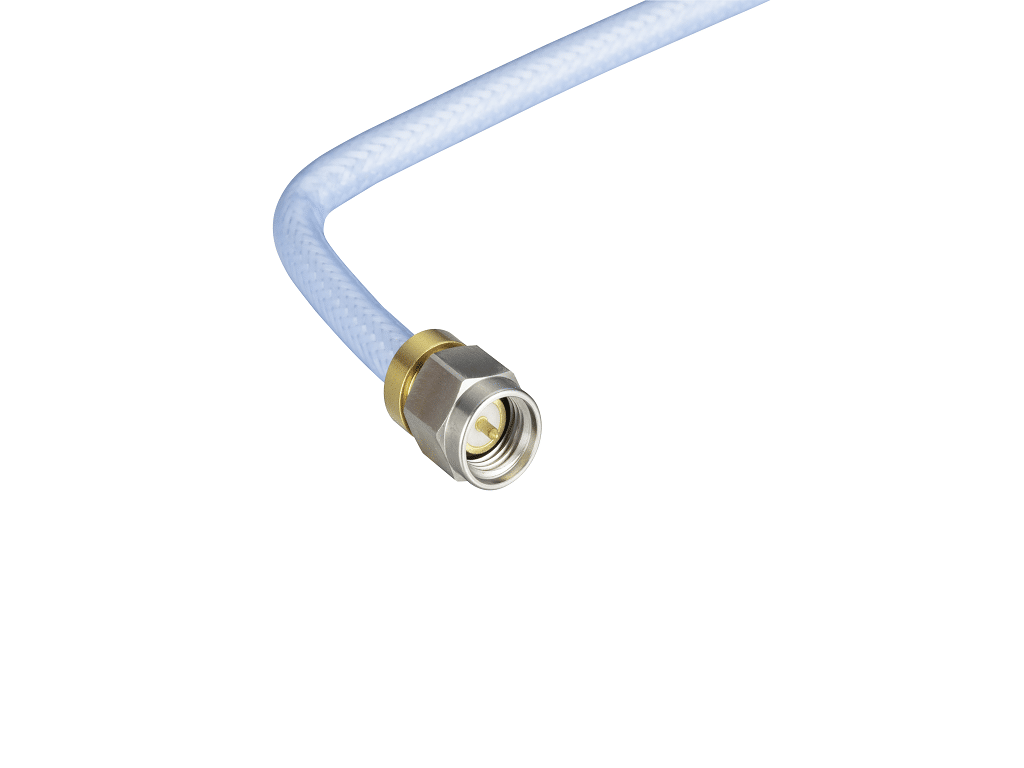

InstaBend 141 cable
Build your Assembly
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
Specifications
| Part NumberIB-141 |
| EnvironmentIndoor |
| JacketFEP |
| Overall Diameter (mm)0.163 |
| Overall Diameter (in)0.163 |
| Weight Kg/m0.028 |
| Weight lb/ft0.028 |
| Operating Temp.°C (°F)125° to 125°C (-85° to 257°F) |
| Min. Bend Radius (mm)12.7 |
| Min. Bend Radius (in)0.5 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)32 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with

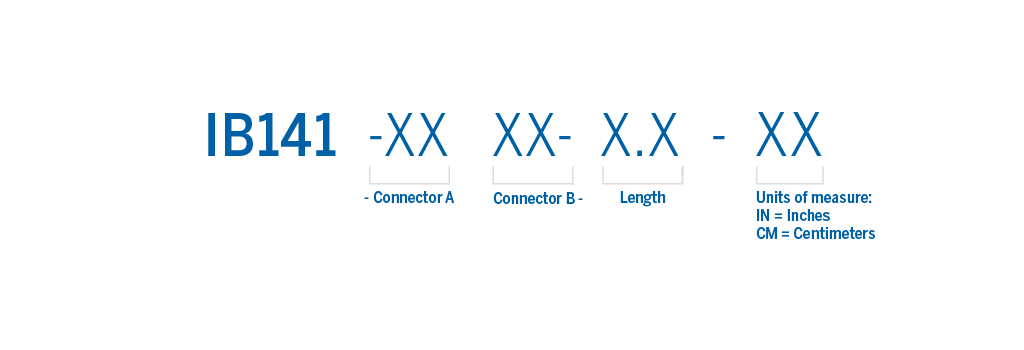

Part Number Structure

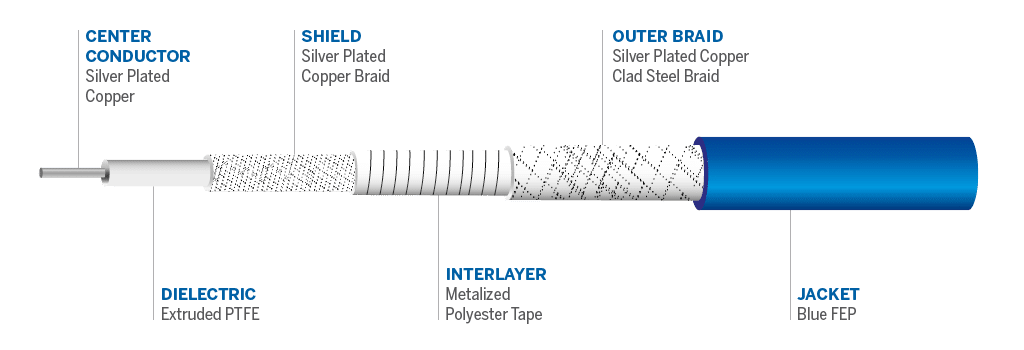

Cable Details
Documentation
