IB-086
InstaBend® 086 cable is a flexible, coaxial microwave assembly designed for interconnects between RF circuit cards, modules, and enclosure panels. The cable can be bent very closely behind the connector, simplifying cable routing.
Stock Code: AA-12025
InstaBend 086 cable
Build your Assembly
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
Specifications
| Part NumberIB-086 |
| EnvironmentIndoor |
| JacketFEP |
| Overall Diameter (mm)0.108 |
| Overall Diameter (in)0.108 |
| Weight Kg/m0.013 |
| Weight lb/ft0.013 |
| Operating Temp.°C (°F)125° to 125°C (-85° to 257°F) |
| Min. Bend Radius (mm)6.35 |
| Min. Bend Radius (in)0.25 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)50 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with
Part Number Structure

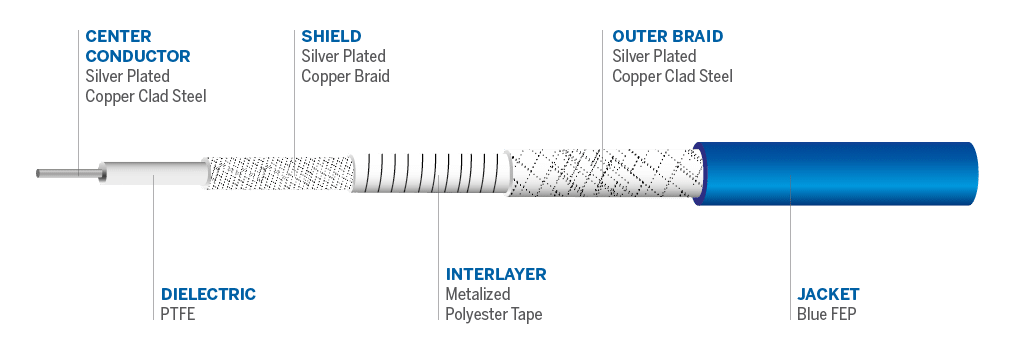

Cable Details
Documentation
