IB-047

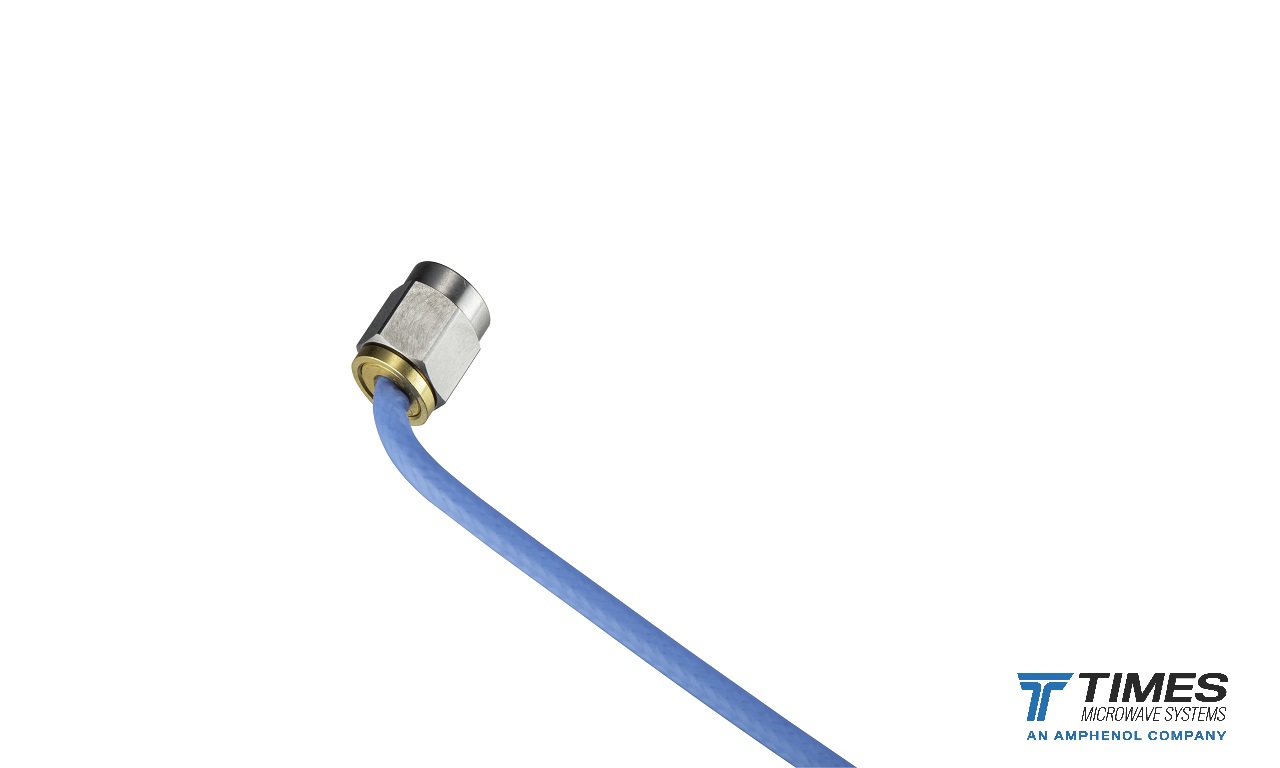

InstaBend® 047 is a flexible, coaxial microwave assembly
designed for interconnects between RF circuit cards,
modules and enclosure panels. The cable can be bent very
closely behind the connector, simplifying cable routing.
Stock Code: AA-12030
InstaBend 047 cable
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberIB-047 |
| EnvironmentIndoor |
| JacketFEP |
| Overall Diameter (mm)1.626 |
| Overall Diameter (in)0.064 |
| Weight Kg/m0.004 |
| Weight lb/ft0.004 |
| Operating Temp.°C (°F)
-65° to 125°C
(-85° to 257°F) |
| Min. Bend Radius (mm)3.3 |
| Min. Bend Radius (in)0.13 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)50 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with
Part Number Structure
Cable Details
Resources
