FBT-195

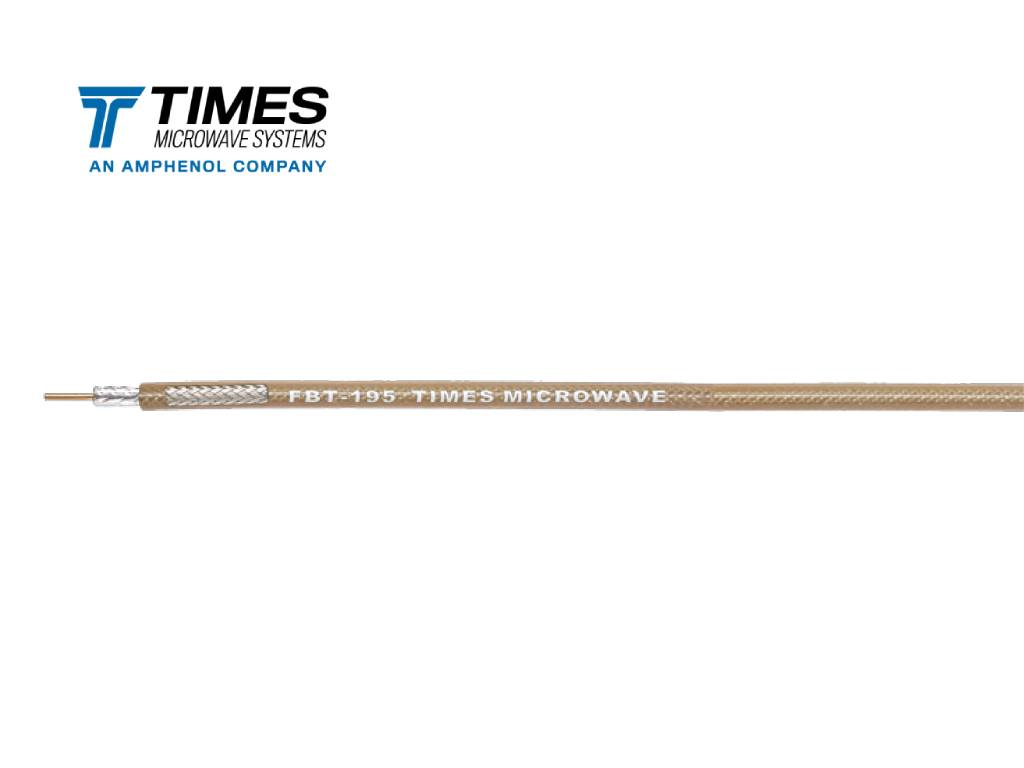

FBT-195 is a flexible, low-loss, high-power coaxial cable engineered for demanding applications such as semiconductor manufacturing, high-power radar systems, and laser technologies. With excellent shielding and power handling, it ensures reliable performance in harsh environments where precision and durability are critical.
Stock Code: 54165
Flexible low-loss, high-power, coaxial cable
Request a Quote
Specifications
| Part NumberFBT-195 |
| Environment |
| JacketFEP |
| Overall Diameter (mm)4.445 |
| Overall Diameter (in)0.175 |
| Weight Kg/m0.0298 |
| Weight lb/ft0.02 |
| Operating Temp.°C (°F)-55° to 150°C (-67° to 302°F) |
| Min. Bend Radius (mm)19.05 |
| Min. Bend Radius (in)0.75 |
| Bending Moment (Nm)0.14 |
| Bending Moment (ft-lb)0.1 |
| Max Frequency (GHz)6 |
| Impedance (ohms)50 |
| Power Handling (DWV)1000 |
